Standard technique for constructing a 3D object from its views:

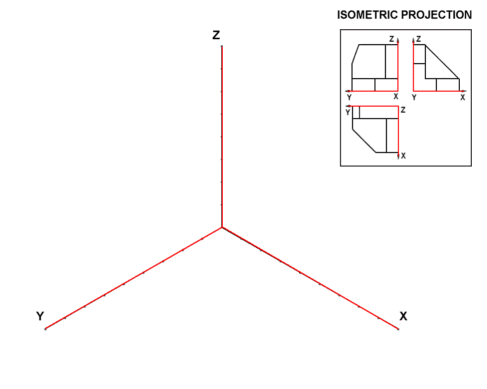

1.- Draw the isometric axes.
2.- Measure and draw the lines of the top view.
3.- Draw vertical lines from all the vertices.
4.- Measure the vertical distances.
5.- Draw the view which has more angles.
6.- Visualise the 3D shape. Think about possible ramps or gaps.
7.- Draw the remaining view.
8.- Check that all the lines in the views can be seen in the 3D shape.
9.- Draw the edges of the 3D shape using thick lines.
|
